SPECIFICATIONS

Application: Charger Controller,Solar System Controller

Battery type: Lead-acid/Lithium/LiFePO4 Battery

Brand Name: Ampinvt

Max PV Power: 99%

Max PV Voltage: 18VDC-80VDC/30VDC-100VDC/40VDC-100VDC/60VDC-150VDC

Model Number: AP-40

Place of Origin: Guangdong, China

Protection: Short Circuit Overload Overvolt Overtemp

Size: 313*230*91mm

Type: MPPT

Work Time (h): 24H

net weight: 3.62kg

operating temperature: -20℃~60℃

storage temperature: 0-3500m

Products Description

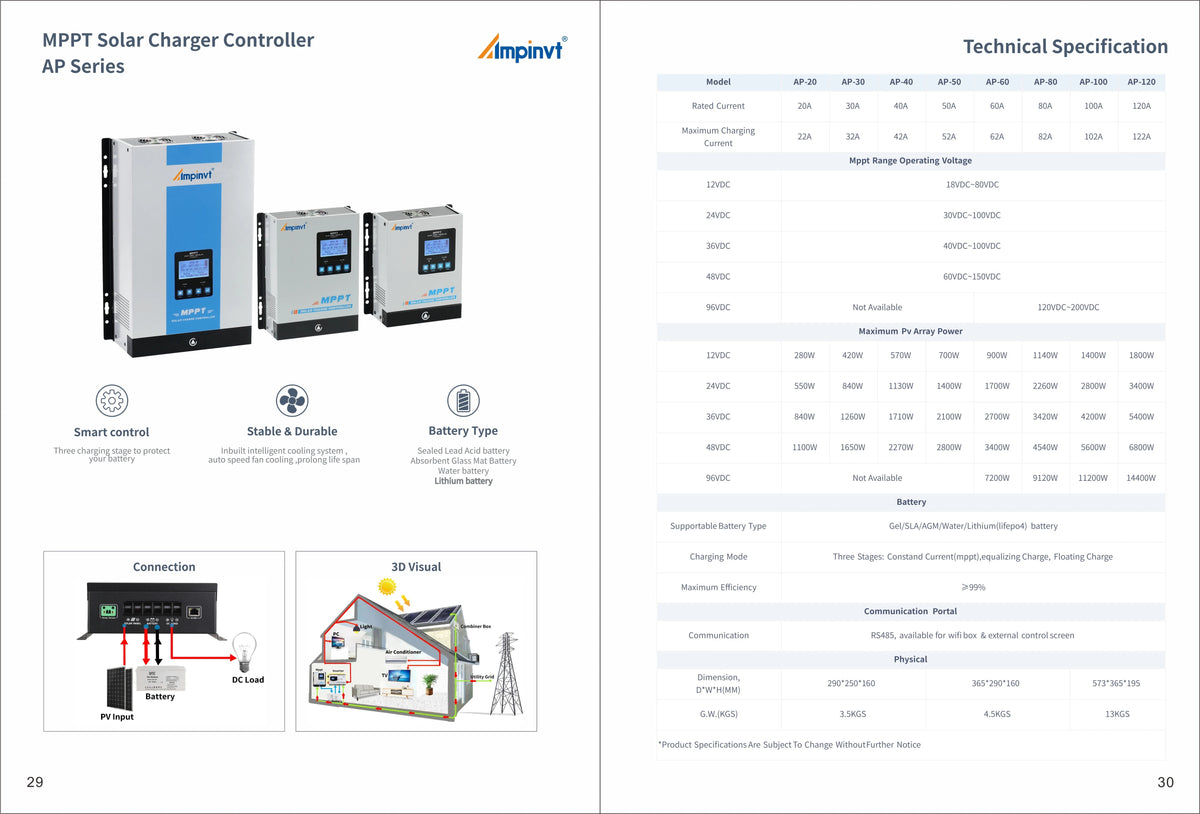

Product Paramenters

Model

AP-20

AP-30

AP-40

AP-50

AP-60

AP-80

AP-100

AP-120

Rated Current

20A

30A

40A

50A

60A

80A

100A

120A

Maximum Charging Current

22A

32A

42A

52A

62A

82A

102A

122A

Mppt Range Operating Voltage

12VDC

18VDC~80VDC

24VDC

30VDC~100VDC

36VDC

40VDC~100VDC

48VDC

60VDC~150VDC

96VDC

Not Available

120VDC~200VDC

Maximum Pv Array Power

12VDC

280W

420W

570W

700W

900W

1140W

1400W

1800W

24VDC

550W

840W

1130W

1400W

1700W

2260W

2800W

3400W

36VDC

840W

1260W

1710W

2100W

2700W

3420W

4200W

5400W

48VDC

1100W

1650W

2270W

2800W

3400W

4540W

5600W

6800W

96VDC

Not Available

7200W

9120W

11200W

14400W

Battery

Supportable Battery Type

Gel/SLA/AGM/Water/Lithium(lifepo4) battery

Charging Mode

Three Stages: Constand Current(mppt),equalizing Charge, Floating Charge

Maximum Efficiency

≥99%

Communication Portal

Communication

RS485, available for wifi box & external control screen

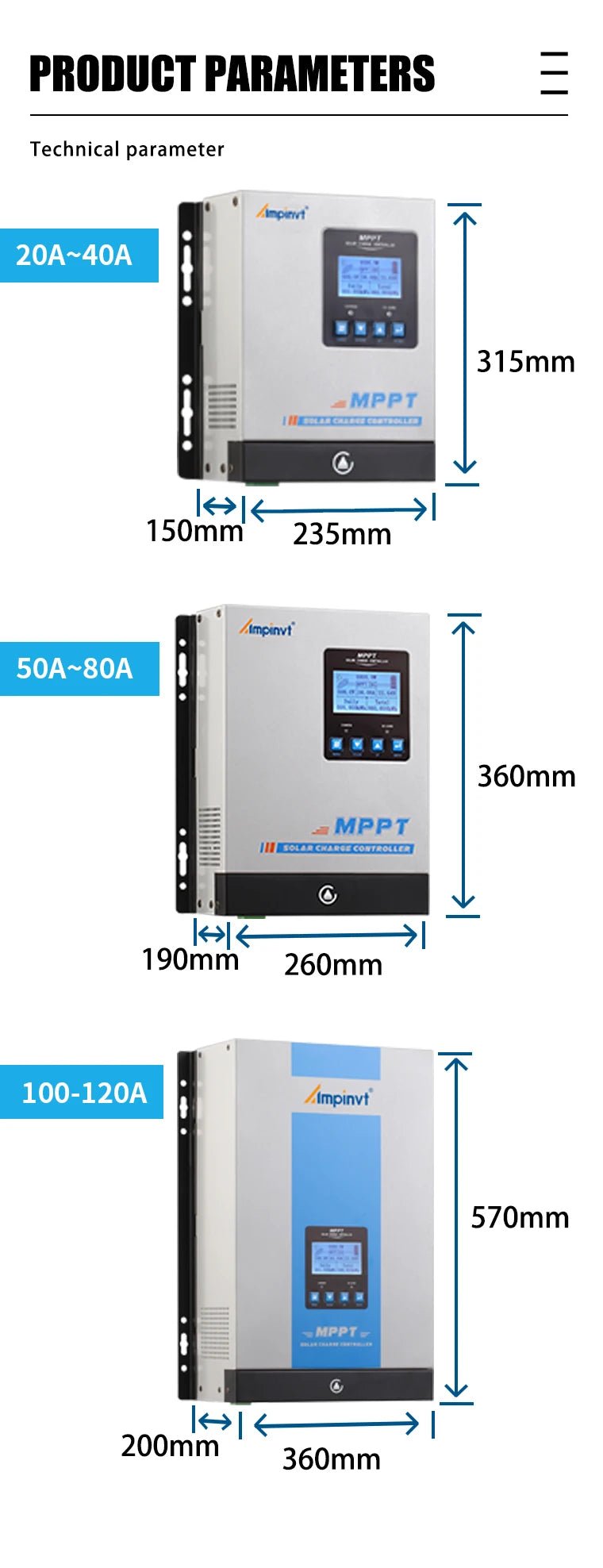

Physical

Dimension, D*W*H(MM)

315*235*150

360*260*190

570*360*200

G.W.(KGS)

3.5KGS

4.5KGS

13KGS

*Product Specifications Are Subject To Change Without Further Notice
